Why OM
Engineering Solutions under One Roof
Why OM
- World Class Quality
- Precision Machining
- Heavy Fabrication with High Accuracy
- Can manufacture any "Challenging Components"
- 20+ Delighted Customers and still counting
- Located near Pune - Banglore Highway, hub of all types of castings
- Speedy Delivery
- Believe in "Customer For Life" Philosophy
About Us
Located at Kolhapur, in Western Indian State Maharashtra, having 30 years of experience in the field of design and manufacturing of components and sub-assemblies.
Core Competencies
Critical Machining
Fabrication
Machine Building
Cast / Forged / Bar stock finish machined components ready for assembly
Products
Equipments
Fixtures
Complete Mechanical / Hydraulic Systems
Material handling equipment’s
Dies, Molds, Patterns as per customer requirements
Services
3D Modeling
Development & Engineering
Designing
Execution of projects with supervision & associates in various fields
Sectors
Power
Water
Material Transfer
Petrochemicals
Sheet metal forming
SPM’s
Infrastructure
Infrastructure
- Laser Cutting Machine
- Plazma Cutting Machine
- Swiss Make Jig Boring Machine
- CNC Pressbrake

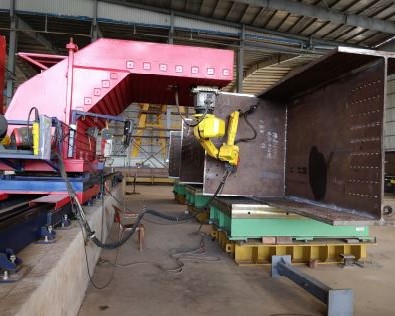

- Fanuc Robot Model 100id/8L
- Ferro Arm for "Reverse Engineering / Scanning / Designing
- CAD with Solidworks and CAM with Delcam Licsensed Software
- VTL
- CNC's & VMC's
- All Types of Welding Conventional Machinary
Valued Customers
Karnataka Power
Corporation Limited
Feature product

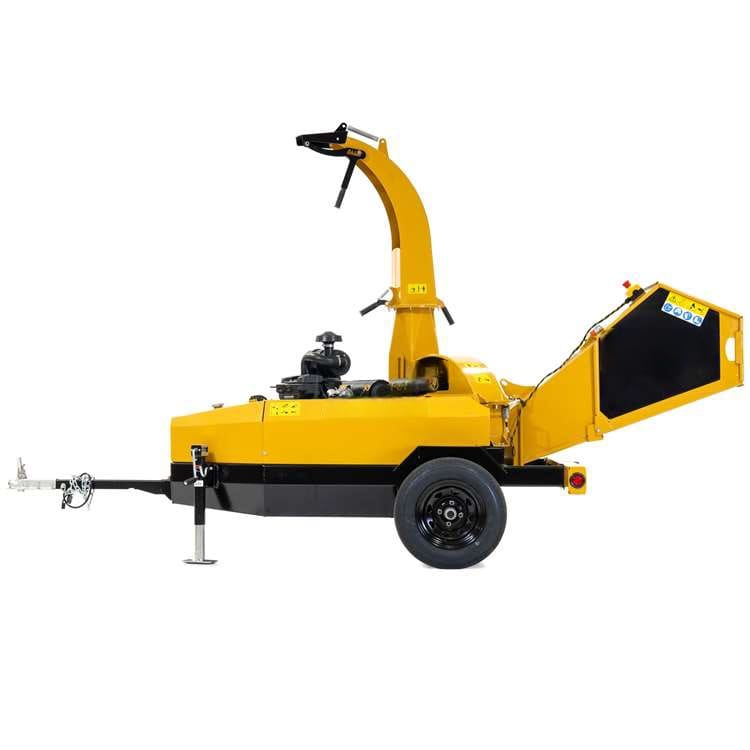

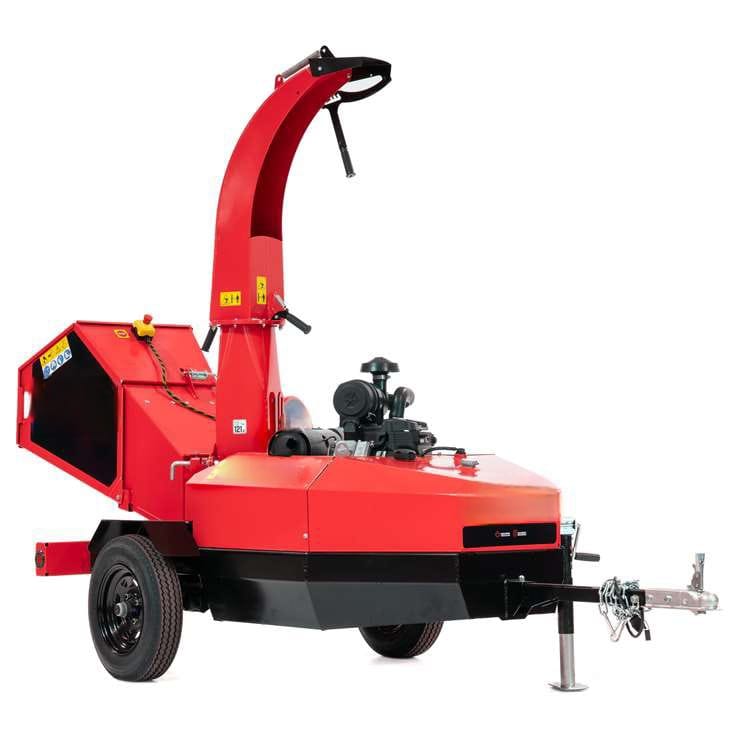

Gravity Feed wood chipper
Details and Specs
| Chipping Capacity: | 7" (18 cm) |
|---|---|
| Chipper Type: | Disc |
| Feed System: | Gravity |
| Engine: | Vanguard® 40 hp (993 cc) EFI |
| Chipper Hopper Opening: | 26.7" x 24" (68 cm x 61 cm) |
| Chipper Rotor Opening: | 7.3" x 11" (18 cm x 27 cm) |
| Number of Chipper Knives: | 4 |
| Rotor Diameter: | 28" (71 cm) |
| Rotor Weight : | 247 lb (112 kg) |
| Discharge Chute Height: | 89" (226 cm) |
| Discharge Chute Rotation: | 295° |
| Drive System: | Centrifugal Clutch, Belt Drive |
| Engine Speed: | 3600 RPM |
| Rotor Speed: | 2070 RPM |
| Tires: | 5.30 x 12 |
| Tongue Weight: | 64 kg |
| Total Weight: | 664 kg |
| Dimensions (LxWxH): | 150" x 54" x 90" (381 cm x 137 cm x 228 cm) | Fuel Tank Capacity: | 46.4 L |
Features
- Adjustable Discharge Chute
- Angled Rotor
- Choose Your Colour
- Electric Start
- Highway Towable
- Oversized Heavy Duty Rotor
- Positional Discharge Deflector
- Reversible Rotor Knives
- Torflex® Suspension Axle
- Twig Breaker

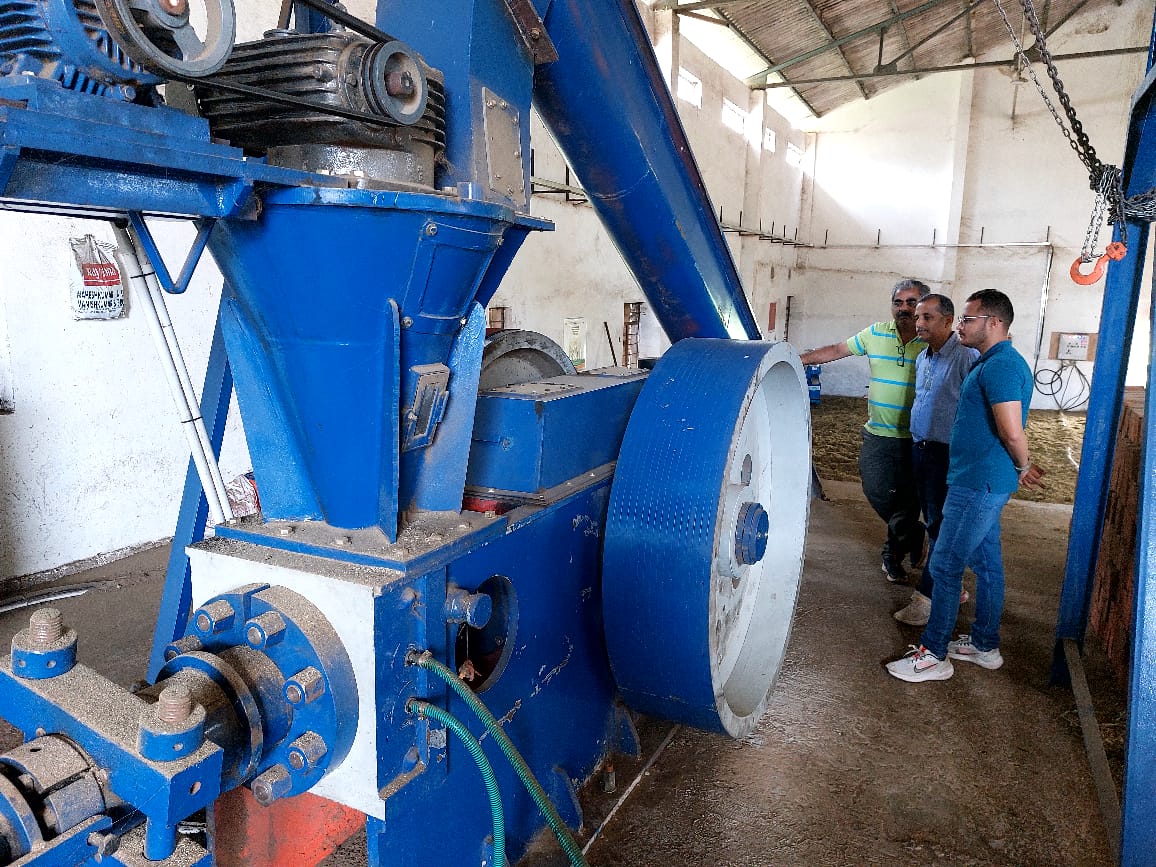

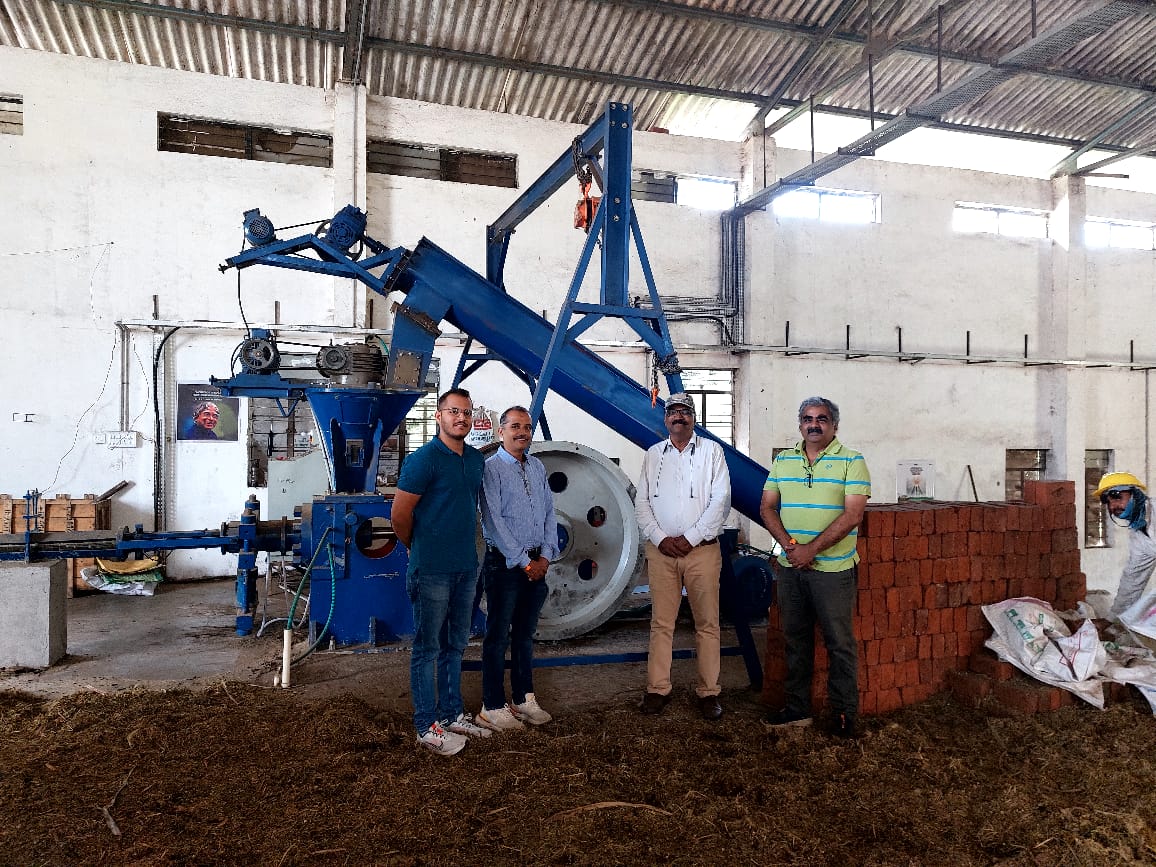

Briquetting Machine
Capacity: 1250-1500kgs/hr.
Size of the briquette: Cylindrical 90mm
Length of the briquette: 50mm to 300 mm.
Main Unit
Briquetting Press consisting of Body (Electrically MIG welded and stress relieved and machined)
Fly Wheels (casted, machined)
Crank Shaft (Ultrasonic tested,machined, Heat treated and ground) Cross Head (Ultrasonic tested, machined, heat treated and ground)
- Connecting rod (Cast Steel, tested, machined)
- Ram (High Carbon High Chromium steel (HCHC) machined and ground)
- Die Holder (Carbon Steel, machined, provision for cooling water circulation)/li>
- Acrylic doom cover to visualise the inner portion of machine.
Along with dowty technology pump, Filter mechanism and Heat exchanger system (Shell &Tube type) for better cooling lubricating oil, Pressure gauge (for monitoring the system pressure).
* Vertical Feeding Hopper with screw driven by gear box &10 HP Electric Motor.
Jack for Die holder clamp. Cooling lines -2 NO.S Complete operating panel board for operating and safety. With automatic high temperature alarming device.
Foundation bolts for machine and main motor Gantry system along with chain pulley block Foundation Frame for main motor.
